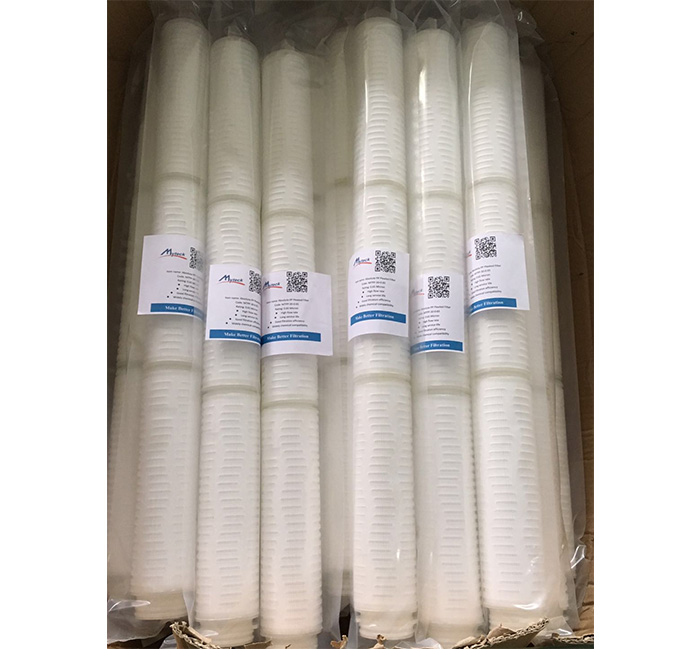

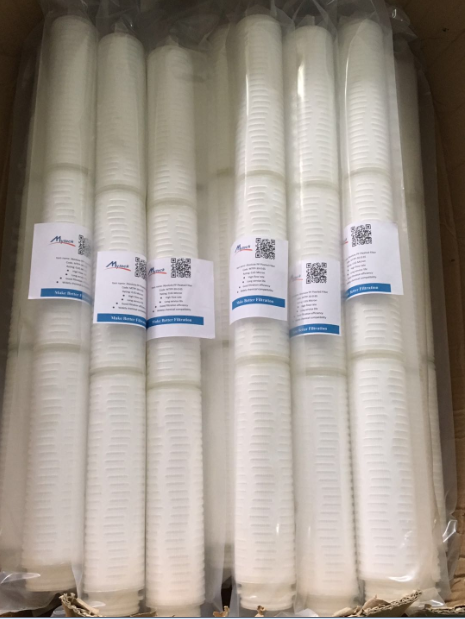

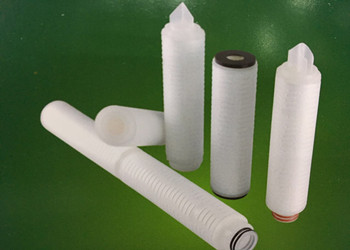

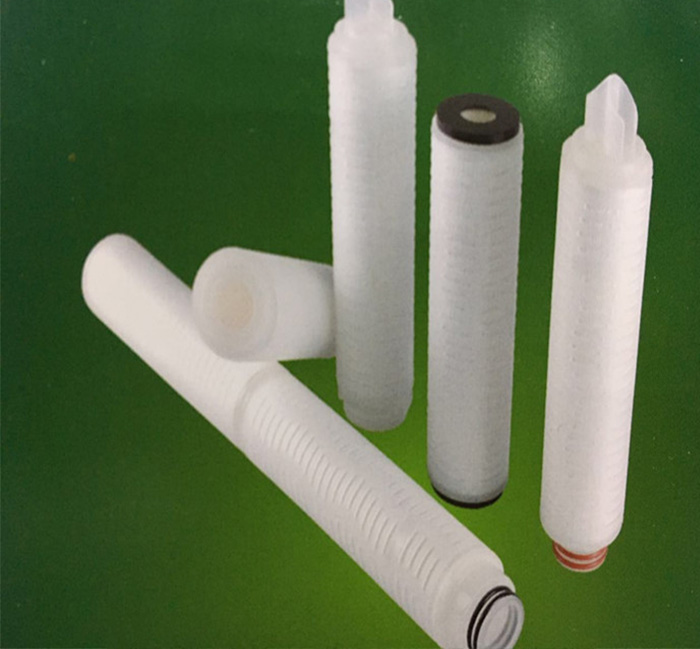

PP Sediment Pleated Filter Cartridge

    PP sediment filter cartridge is used in industrial water purification system of water and drink factories before RO membrane to protect RO membrane from being damaged, so called security filter or precision filter. It can also be used in water purification system of other industries, like pharmaceutical factory, electronics factory and waste water treatment. Pleated filter cartridge has better filtration effect and larger filtration area and longer service life than meltblown PP filter.

Features:

1. Wide chemical compatibility, high water output, low pressure difference, long service life, cheap price.

2. Wide selection of filtration precision from 0.1μm to 60μm.

3. High pressure disinfection and steam sterilization.

Specifications:

• Filtration precision: 0.1μm, 0.22μm, 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 60μm

• Effective filtration area: ≥0.65m2

• length: 2.5"-40"

• Normal working temperature: ≤55°

• Highest working temperature: 80° (ΔP≤0.1Mpa)

• Steam sterilization: 121±2℃ 30 minutes

• PH value: 1-13

• Main connectors: 220, 215, 222, 226

• Main fin types: triangle, half circle, flat end

Integrity Test: (min bubble, 25℃, 95% isopropyl alcohol)

      0.10μm≥0.018Mpa

      0.20μm≥0.014Mpa

      0.45μm≥0.008Mpa

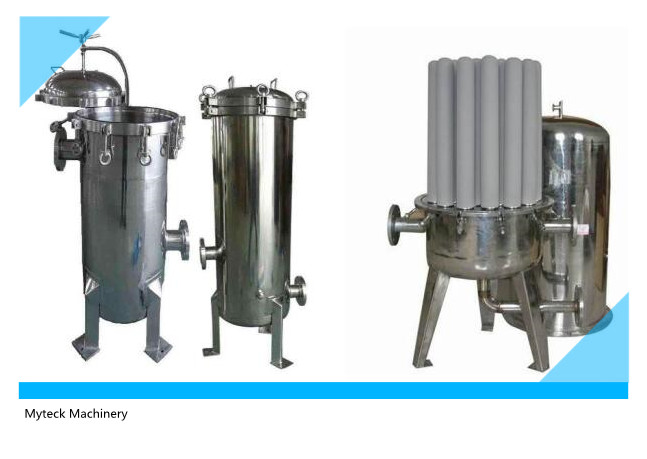

Installed PP Cartridges in Security Filter:
